Face & Halo Lit Signs

Face & Halo Lit Signs give every letter or logo piece its own shell with an acrylic face that lights up, while light from the back casts a halo on the wall. Vinyl can give the lit face a different color from the halo, and the metal or acrylic shells mount flush or off the wall, indoors or out.

Get a Free Quote

Face & Halo Lit Signs Sample Cases

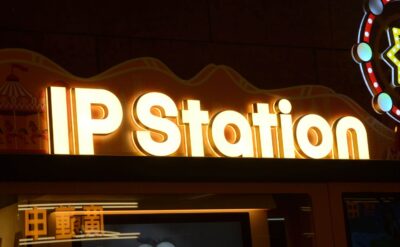

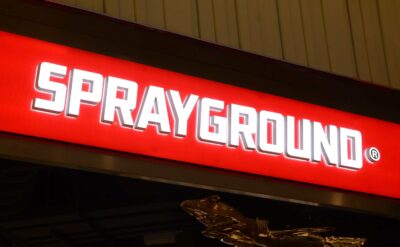

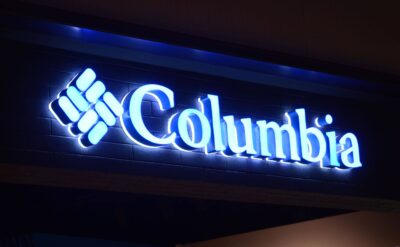

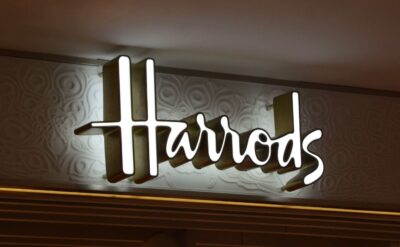

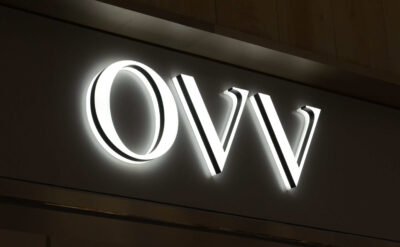

Here are sample photos of Face & Halo Lit Signs to help you choose the look of your own sign. Click any photo for a short description of how it was made.

Parts of a Face & Halo Lit Sign

Face & Halo Lit Signs in red script, with a white halo on the wall behind them

Face & Halo Lit Signs are one of several ways we build halo lit channel letters. Each letter works as two parts: the front part lights the acrylic face, and the rear part casts the halo on the wall. The rear part is built like Basic Metal Halo Lit Signs, Pro Metal Halo Lit Signs or Acrylic Halo Lit Signs, and that decides how the back is closed and how the sign mounts. Every Face & Halo Lit Sign is made up of five parts:

Key Specifications

Minimum letter height
3-15/16 in (100 mm)
Minimum stroke width
3/8 in (10 mm)
Letter shell
Fabricated metal (stainless steel by default) or CNC-engraved acrylic
Face
Acrylic, lit from inside
Mounting
Flush or off the wall, depending on how the rear part is built, on stud bolts. Off the wall, tube spacers set the gap and keep the wires and bolts out of sight.
Production time
About 15 working days after you approve the shop drawings
Price
From US$50
  • As with every lit sign, we recommend a professional sign installer to protect its look, safety and service life.
  • Even above the minimum size, some letters have strokes of uneven width, or their shells leave only just enough room to spread the LEDs evenly. PCB LEDs give these letters a very even glow, because every LED sits on the circuit board at a position that has been calculated and tested. They improve the light, not the minimum letter size. They are fully custom LEDs with a minimum order quantity, and every letter needs its own PCB LED. Getting them right can take several rounds of testing and adjustment.
  • Production begins once you approve the shop drawings. For every step from inquiry to delivery, see how ordering works.

Letter Shell

Material
304 stainless steel by default, marine-grade 316 stainless steel near the sea, or acrylic
How it is made
Fabricated for metal shells, CNC engraved from solid acrylic for acrylic shells
Finishes
  • Stainless steel, painted: gloss, semi-gloss or matte paint or powder coat, or metallic paint
  • Stainless steel, base finishes: mirror polished, brushed or vibration finish
  • Stainless steel, plated: gold, rose gold, brass, copper, bronze, black titanium and other colors, over any of the base finishes above
  • Stainless steel, vintage: brass, copper or bronze, plain or with a vibration finish
  • Stainless steel, wood grain: a wood grain transfer finish
  • Acrylic shells: gloss, semi-gloss or matte paint or powder coat on the sides
  • Powder coat comes only in the powder makers' ready-made colors, a few common ones such as black, white and some neutral shades. We don't tint powder, so it can't be matched to a color chart. For a custom color, give us its code from Pantone, RAL, Sherwin-Williams or Matthews Paint, and we will mix liquid paint to match.
  • A partner factory handles plated, vintage and wood grain finishes, which adds about 3 working days to production time.
  • We don't recommend plating for signs near the sea, because salt corrodes the plated layer.
  • See the finish options, with photos, in our finish gallery.

Face and Back Panel

Face
Acrylic, lit from inside
Back panel
Acrylic behind a metal shell, or an aluminum plate behind an acrylic shell
Brands
DonChamp by default, or Mitsubishi or Degussa (PLEXIGLAS) on request
  • With a metal shell, light shines through the acrylic back panel onto the wall.
  • With an acrylic shell, the LEDs are mounted on the aluminum back panel, which then closes the back of the shell.

LEDs

LED type
LED modules, LED strips or PCB LEDs
Voltage
12 V DC LEDs by default, or 24 V DC LEDs on request
Brand
BlueView by default
Light colors
  • White (6000K)
  • Natural white (4000K)
  • Warm white (3000K)
  • Red
  • Yellow
  • Blue
  • Green
  • Controllable RGB or RGBW
  • Other colors made to order, in a close shade rather than an exact color
  • Outdoor Face & Halo Lit Signs use waterproof LEDs, and for very rainy areas we upgrade them to IP67 LEDs.

Electrical Wiring

Wire type
UL-certified flame-retardant two-core copper wire by default
Gauge
AWG 15 (1.5 mm²) by default
Lead length
78-3/4 in (2,000 mm) per letter by default
  • For the main power line, we recommend AWG 13 (2.5 mm²) or heavier. It is not included by default.
  • How each letter connects to the power supply is shown in our wiring diagram.

Power Supply

Brand
MEAN WELL
Series
LPV series by default (model LPV-60-12)
Input
90-264 V AC
Output
12 V DC by default, or 24 V DC with 24 V LEDs
Protection
IP67 waterproof
  • Each sign's power supply is chosen to match the power we measure on the finished sign, and it must be wired exactly as shown in the wiring diagram we provide.
  • If your site runs on commercial or industrial power rather than standard residential power, tell us its voltage and frequency before you order, and we will fit a power supply rated for it.

Certification and Mounting Kit

Certification
UL Listed
Operating temperature
−22 to 158°F (−30 to 70°C)
Mounting kit
  • Full-size (1:1) mounting template
  • Stud bolts
  • Nuts and washers, for walls you can reach from behind
  • Stainless steel tube spacers, for signs mounted off the wall
  • Wiring diagram
  • Installation instructions
  • Stud bolts hold each letter on the wall. Use the template to mark where to drill for the bolts and wires.
  • Nuts and washers are for walls you can get behind, such as thin drywall partitions, where they secure the stud bolts from the other side.
  • For signs mounted off the wall, the stainless steel tube spacers, 13/16 in (20 mm) long by default, hold all the letters at one distance from the wall and conceal the wires.

Warranty

  • Face & Halo Lit Signs come with a 3-year limited warranty against defects in materials and workmanship. If a part fails within 3 years because of such a defect, we send you a free replacement by DHL at our cost. Import duties are not covered, and neither is the labor to remove the faulty part or install the new one. The warranty doesn't cover damage from lightning, floods, storms or other natural disasters, or from power surges, improper installation or wiring. Damage caused by people isn't covered either. If you need a 5-year warranty, tell us and we will provide it as a custom service.
  • The power supply carries MEAN WELL's own warranty, and any controllers carry their makers' own warranties. We'll contact these makers for you and help you get warranty service. Shipping and duties for those parts are paid by you.
  • LEDs dim gradually with use. When your sign is no longer bright enough, we recommend replacing the sign. The shells can be opened to replace the LEDs, but that is skilled work, and a damaged shell would leave the sign worse off than before.

Diagrams

Face & Halo Lit Signs FAQ

Either way works. The right choice depends on what you need and on the details of your sign.

Fabricated metal shells, stainless steel by default, or CNC-engraved solid acrylic shells. Both kinds light up on the face and cast a halo on the wall.

Yes. Vinyl on the face can give it a different light color from the halo behind it.

The letters need a height of 3-15/16 in (100 mm) and a stroke width of 3/8 in (10 mm), at minimum.
