Face & Side-Lit Signs
Face & Side-Lit Signs give every letter or logo piece its own acrylic shell, with LEDs inside lighting up both the face and the sides. Light from the sides falls on the wall around each piece as a halo, in a wide choice of colors from colored LEDs or colored acrylic, and they usually mount flush, indoors or out.
Get a Free QuoteFace & Side-Lit Signs Sample Cases

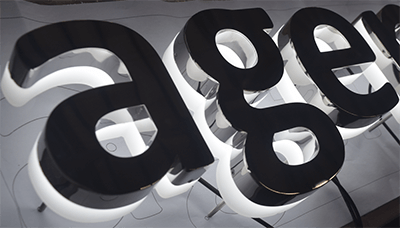

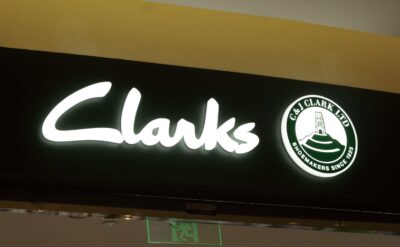

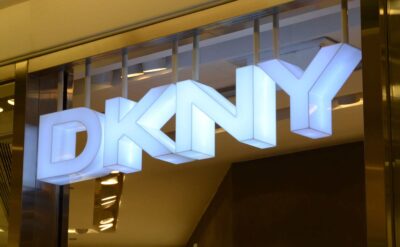

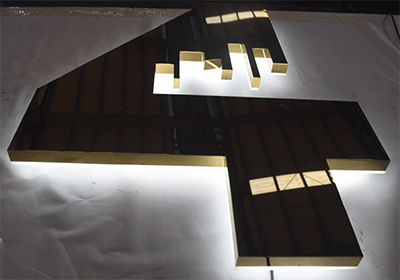

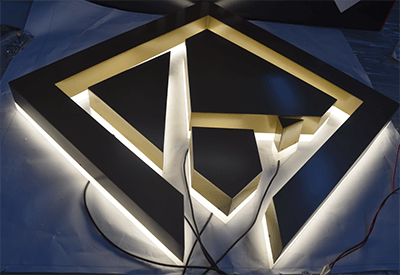

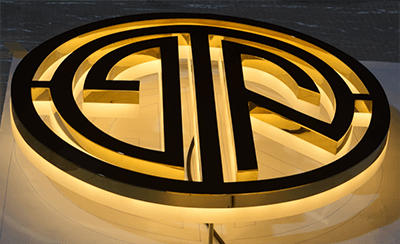

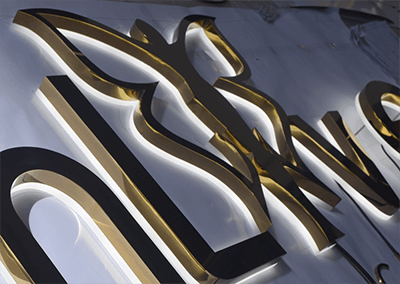

Here are sample photos of Face & Side-Lit Signs to help you choose the look of your own sign. Click any photo for a short description of how it was made.
Parts of a Face & Side-Lit Sign
Face & Side-Lit Signs are one of several ways we build halo signage. The whole letter glows, face and sides alike, and the light from its sides lights up the wall around it with a halo. They usually mount flush on a wall. Every Face & Side-Lit Sign is made up of five parts:
Key Specifications
- Minimum letter height
- 3-15/16 in (100 mm)
- Minimum stroke width
- 13/16 in (21 mm)
- Default depth
- 13/16 in (20 mm)
- Back panel
- White powder-coated aluminum, 1/16 in (1.5 mm), laser cut, with the LEDs mounted on it
- Mounting
- Usually flush on a wall, on stud bolts. Off the wall when needed, for example on a curved wall, where tube spacers set the gap and keep the wires and bolts out of sight.
- Production time
- About 15 working days after you approve the shop drawings
- Price
- From US$50
- As with every lit sign, we recommend a professional sign installer to protect its look, safety and service life.
- Even above the minimum size, some letters have strokes of uneven width, or their shells leave only just enough room to spread the LEDs evenly. PCB LEDs give these letters a very even glow, because every LED sits on the circuit board at a position that has been calculated and tested. They improve the light, not the minimum letter size. They are fully custom LEDs with a minimum order quantity, and every letter needs its own PCB LED. Getting them right can take several rounds of testing and adjustment.
- Production begins once you approve the shop drawings. For every step from inquiry to delivery, see how ordering works.
Acrylic Letter Shell
- Material
- Opal acrylic
- How it is made
- CNC engraved in most cases
- Default depth
- 13/16 in (20 mm)
- Colored light
- Colored LEDs or colored acrylic
- Brands
- DonChamp by default, or Mitsubishi or Degussa (PLEXIGLAS) on request
LEDs
- LED type
- LED modules, LED strips or PCB LEDs
- Voltage
- 12 V DC LEDs by default, or 24 V DC LEDs on request
- Brand
- BlueView by default
- Light colors
- White (6000K)
- Natural white (4000K)
- Warm white (3000K)
- Red
- Yellow
- Blue
- Green
- Controllable RGB or RGBW
- Other colors made to order, in a close shade rather than an exact color
- Outdoor Face & Side-Lit Signs use waterproof LEDs, and for very rainy areas we upgrade them to IP67 LEDs.
Aluminum Back Panel
- Material
- Aluminum
- How it is made
- Laser cut to the shape of each letter
- Thickness
- 1/16 in (1.5 mm)
- Finish
- White powder coat
- The LEDs are mounted on the back panel, which then closes the back of each acrylic shell.
Electrical Wiring
- Wire type
- UL-certified flame-retardant two-core copper wire by default
- Gauge
- AWG 15 (1.5 mm²) by default
- Lead length
- 78-3/4 in (2,000 mm) per letter by default
- For the main power line, we recommend AWG 13 (2.5 mm²) or heavier. It is not included by default.
- How each letter connects to the power supply is shown in our wiring diagram.
Power Supply
- Brand
- MEAN WELL
- Series
- LPV series by default (model LPV-60-12)
- Input
- 90-264 V AC
- Output
- 12 V DC by default, or 24 V DC with 24 V LEDs
- Protection
- IP67 waterproof
- Each sign's power supply is chosen to match the power we measure on the finished sign, and it must be wired exactly as shown in the wiring diagram we provide.
- If your site runs on commercial or industrial power rather than standard residential power, tell us its voltage and frequency before you order, and we will fit a power supply rated for it.
Certification and Mounting Kit
- Certification
- UL Listed
- Operating temperature
- −22 to 158°F (−30 to 70°C)
- Mounting kit
- Full-size (1:1) mounting template
- Stud bolts
- Nuts and washers, for walls you can reach from behind
- Stainless steel tube spacers, for signs mounted off the wall
- Wiring diagram
- Installation instructions
- Stud bolts hold each letter on the wall. Use the template to mark where to drill for the bolts and wires.
- Nuts and washers are for walls you can get behind, such as thin drywall partitions, where they secure the stud bolts from the other side.
- For signs mounted off the wall, the stainless steel tube spacers, 13/16 in (20 mm) long by default, hold all the letters at one distance from the wall and conceal the wires.
Warranty
- Face & Side-Lit Signs come with a 3-year limited warranty against defects in materials and workmanship. If a part fails within 3 years because of such a defect, we send you a free replacement by DHL at our cost. Import duties are not covered, and neither is the labor to remove the faulty part or install the new one. The warranty doesn't cover damage from lightning, floods, storms or other natural disasters, or from power surges, improper installation or wiring. Damage caused by people isn't covered either. If you need a 5-year warranty, tell us and we will provide it as a custom service.
- The power supply carries MEAN WELL's own warranty, and any controllers carry their makers' own warranties. We'll contact these makers for you and help you get warranty service. Shipping and duties for those parts are paid by you.
- LEDs dim gradually with use. When your sign is no longer bright enough, we recommend replacing the sign. The shells can be opened to replace the LEDs, but that is skilled work, and a damaged shell would leave the sign worse off than before.
Diagrams
Face & Side-Lit Signs FAQ
The face and the sides of every letter light up. The light from the sides also falls on the wall around each letter and forms a halo.
Use colored LEDs or colored acrylic.
Fabricated acrylic shells crack more easily during shipping, so we CNC engrave most of them instead.
Yes. Besides walls, Face & Side-Lit Signs can go on a ceiling, the floor or a rooftop. Choose the spot by whose view you want to catch.
The smallest letter stands 3-15/16 in (100 mm) high, and its strokes are 13/16 in (21 mm) wide.
Written by the HaloLitSigns.com engineering team
Get a Free Quote
Tell us about the Face & Side-Lit Sign you need, and we will reply within one working day.
