Halo Lit Letters
Halo lit letters are individual 3D letters in stainless steel or acrylic, and the LEDs inside each one light the wall behind it with a soft halo. Made to your own lettering for storefronts, lobbies, offices, shops, salons and homes, indoors or out, every set is UL Listed and backed by a 3-year limited warranty.

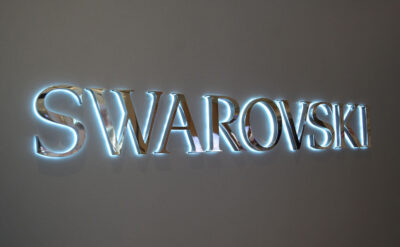

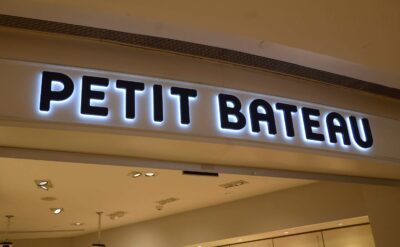

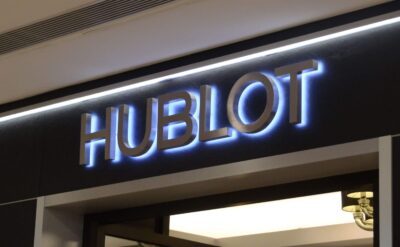

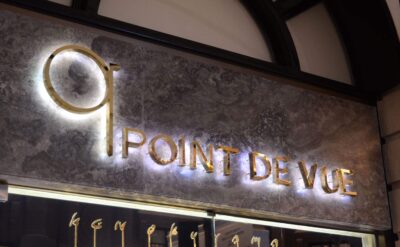

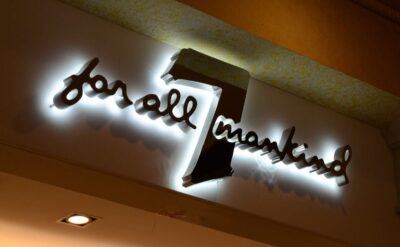

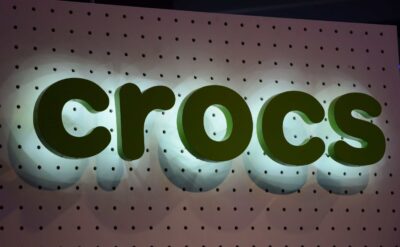

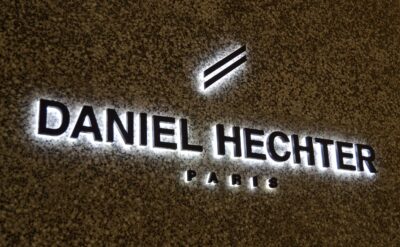

Halo Lit Letters Sample Cases
Here are sample photos of halo lit letters to help you choose the look of your own sign. Click any photo for a short description of how it was made.
What Are Halo Lit Letters?

Each letter is a hollow shell, fabricated from stainless steel or CNC engraved from solid acrylic, with its own LEDs and circuit inside. On most of our models the face itself stays unlit. The light leaves through the back and lands on the wall, so every letter stands inside a ring of light that follows its outline. Face & Halo Lit Signs, Face & Side-Lit Signs and Halo Effect Light Box Signs light up the face as well.
Lit, the letters seem to float a little off the wall, and the glow around them gives the name a depth that a flat sign cannot match. With the lights off, you still see solid, dimensional letters in a brushed, mirror-polished, plated or painted finish. The sign holds its look in both states.
That understated glow is why halo lit letters are a popular choice for storefronts, hotel and office lobbies, reception walls, shops, coffee shops and homes. They work indoors and out. They get noticed, and they do it with soft light on the wall rather than a bright lit face. How far away your visitors can read them depends on the choices in How to Choose below.
How the Halo Effect Works
The LEDs shine out of the back of each letter, and the wall sends that light back toward the viewer. How the halo turns out depends on the model, because each one lets the light out from a different place. Mounting, wall color and light color change it too. Our guide to halo signage compares the models on this point. Our guide to reverse lit channel letters goes into mounting, wall and light in detail.
How They Are Built
Every letter needs room inside for its LEDs, which is why our channel letter models start at 3-15/16 in (100 mm) tall. Metal letters are fabricated. The face is laser cut from stainless steel, 304 by default, the return is bent to follow it, and both are welded into one hollow letter shell. Acrylic letters are CNC engraved from solid acrylic, which keeps complex shapes clean.
From there the models differ in how the back is built and where the light leaves. Compare them in Halo Lit Letters Models below, where each card links to the full specifications. Smaller lettering can still have a halo inside one of our Halo Effect Light Box Signs, which take letters down to 1-9/16 in (40 mm). Every model also has a minimum stroke width, listed on its model page.
Where They Work Best
On a storefront, the name has to be read from the sidewalk or the parking lot, so letter height and stroke width lead the decision. In a lobby or behind a reception desk, visitors stand close, so the finish and the fine detail of each letter matter more. Outdoors, the letters need extra protection against rain and sun, and our guide to outdoor halo lit signs sets it out.
How to Choose Halo Lit Letters
Choosing halo lit letters comes down to a handful of decisions, and the quote and the shop drawings follow from them. Take the points below in order, and the model will be clear by the end. Logos follow the same points plus a few of their own, and our halo lit logo guide covers those.
To see every model side by side, compare all our models. Send your artwork with a photo of the wall, and we will recommend a model with the quote. Every set is lit for 24 hours and photographed before it ships, and the 3-year limited warranty covers it after that. Here is how ordering works once you are ready.
- Size
- Letter height sets how far the name reads. A letter stays readable from about 100 to 120 times its own height, or about 1 in of height for every 10 ft of viewing distance. Letters 36 in (914 mm) tall carry to about 300 to 360 ft (91 to 110 m). Measure from where your main visitors stand, not from the wall.
- Readability
- Sans serif fonts read farther than serif or script, and thick strokes read farther than thin ones. Even gaps between letters read better than letters that touch. Pick a letter color that contrasts with the wall, and set the sign at right angles to your visitors' line of sight, not parallel to it.
- Light color
- White halos read farther than colored ones. Match the tone to the lamps already in the space: white at 6000K, natural white at 4000K or warm white at 3000K. Colored halos are possible too, though the light is never matched to a Pantone code.
- Model
- Large letters and harsh weather favor Basic Metal Halo Lit Signs. Fine detail favors Pro Metal Halo Lit Signs or Acrylic Halo Lit Signs. Lettering too small for its own shell goes into one of our Halo Effect Light Box Signs. The cards below cover the rest.
- Finish
- You see the letters unlit as often as lit, so choose a finish that suits the wall both ways. Brushed, mirror-polished or plated stainless steel keeps the metal look, and paint or powder coat covers the letters in a solid color.
Halo Lit Letters FAQ
Choose by the lighting around the sign. Warm white (3000K) is the warmest, natural white (4000K) sits in the middle, and white (6000K) is the coolest. Tell us the color temperature of the lights near your sign, and we will suggest the white that suits it.
Only where a stroke is too thin to hold the LEDs. Script, serif and sans serif fonts can all be made, and we keep any change as small as possible and note it in your quote.
Yes, and many signs are built that way. A business name in halo lit letters often has a second line of small lettering under it, and that line is made as non-lit 3D letters. The two parts read as one sign, and we quote them together.
Written by the HaloLitSigns.com engineering team
Get a Free Quote
Tell us about your halo lit letters, and we will reply within one working day.
Halo Lit Letters Models
These models are made as halo lit letters. Each model page has full specifications, sample cases and PDF diagrams.
Pro Metal Halo Lit Signs
Every letter or logo piece has its own separate fabricated metal shell, stainless steel by default, with a stepped acrylic back panel that sits partly inside the shell and partly outside it. They have the edge for showing detail, and their exposed acrylic gives a brighter, wider halo.
More Details about Pro Metal Halo Lit SignsAcrylic Halo Lit Signs
Every letter or logo piece has its own separate CNC-engraved acrylic shell, with the face and the sides near the face painted to block the light. CNC engraving keeps complex letter shapes clean, which suits fine fonts seen up close.
More Details about Acrylic Halo Lit Signs
Side-Lit Signs
Every letter or logo piece has its own separate acrylic shell, mostly CNC engraved and sometimes fabricated, with a solid face of painted acrylic, black acrylic or a metal plate. Their faces stay solid while the sides glow and light the wall around each letter.
More Details about Side-Lit Signs
Face & Halo Lit Signs
Every letter or logo piece has its own separate shell, which can be built in many ways, in fabricated metal (stainless steel by default) or in acrylic. The face glows, while light from the back lights up the wall behind it and forms a halo around the outline. Their lit faces add brightness, and vinyl can give the face a different color from the halo.
More Details about Face & Halo Lit Signs
Face & Side-Lit Signs
Every letter or logo piece has its own separate shell, usually acrylic, whose face and sides both light up. The whole letter glows, face and sides, in colored LEDs or colored acrylic if you like.
More Details about Face & Side-Lit Signs
Halo Effect Light Box Signs
Some letters or logos are too small to be made as individual lit letters, yet still need to light up and have a halo. For them, a halo effect light box is the only way to do it. All the LEDs sit together in one metal box. They light lettering as small as 1-9/16 in (40 mm) tall, too small for individual shells.
More Details about Halo Effect Light Box Signs
