Reverse Lit Channel Letters
Reverse lit channel letters are 3D letters in stainless steel or acrylic whose LEDs shine backward onto the wall and ring each letter with light. Made to your artwork for storefronts and lobbies, indoors or out, every set is UL Listed with a 3-year limited warranty, and the mounting gap, wall color and light color are yours to set.

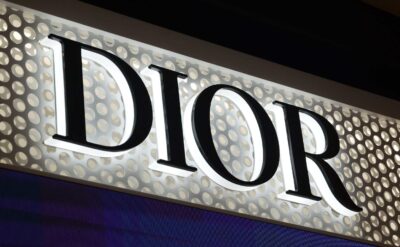

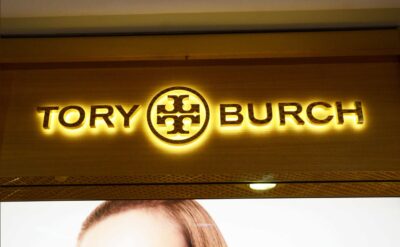

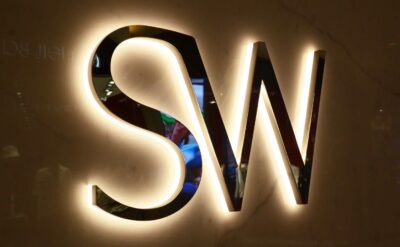

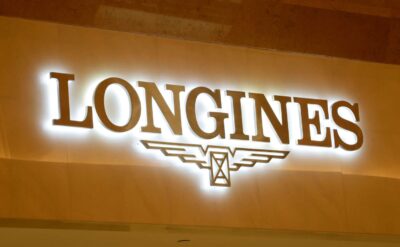

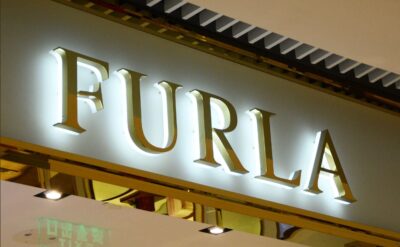

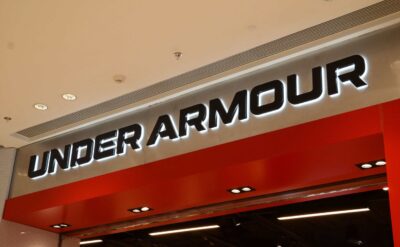

Reverse Lit Channel Letters Sample Cases
Here are sample photos of reverse lit channel letters to help you choose the look of your own sign. Click any photo for a short description of how it was made.
What Are Reverse Lit Channel Letters?

Reverse lit channel letters, which you may also hear called halo lit channel letters or reverse channel letters, are lit from behind. Each letter, and each separate piece of a logo, is a hollow shell with its own LEDs and circuit, and the face stays unlit. The name goes back to the age of light bulbs, when open-face channel letters were turned around to face the wall.
With the lights on, the wall carries a band of light around every letter, and the letters seem to lift off it. With the lights off, you are left with solid 3D letters in brushed, mirror-polished, plated or painted metal, or in acrylic, so the sign looks right in both states.
That is why reverse lit channel letters are the choice for storefronts, hotel and office lobbies, reception walls, coffee shops and salons, wherever the owner wants to be seen without a glaring face. They work indoors and out, on brick, concrete, stucco, drywall and stone. The gap, the wall and the light color decide how the halo looks, and this page takes them one at a time.
How the Halo Effect Works
The halo is reflected light. The LEDs sit inside each letter and shine out of its back, and what you see is the wall throwing that light back at you. The gap behind the letter, the color of the wall and the color of the LEDs decide how it looks.
The wall color carries into the halo, most of all into a soft one, so send us a photo of the wall with your artwork and we will allow for it. The LED color becomes the halo color. White comes as white, natural white or warm white, chosen to suit the lamps around the sign, and a colored halo is possible too. Light is never matched to a Pantone code, only paint is.
The gap depends on the model, and so does how the light gets out:

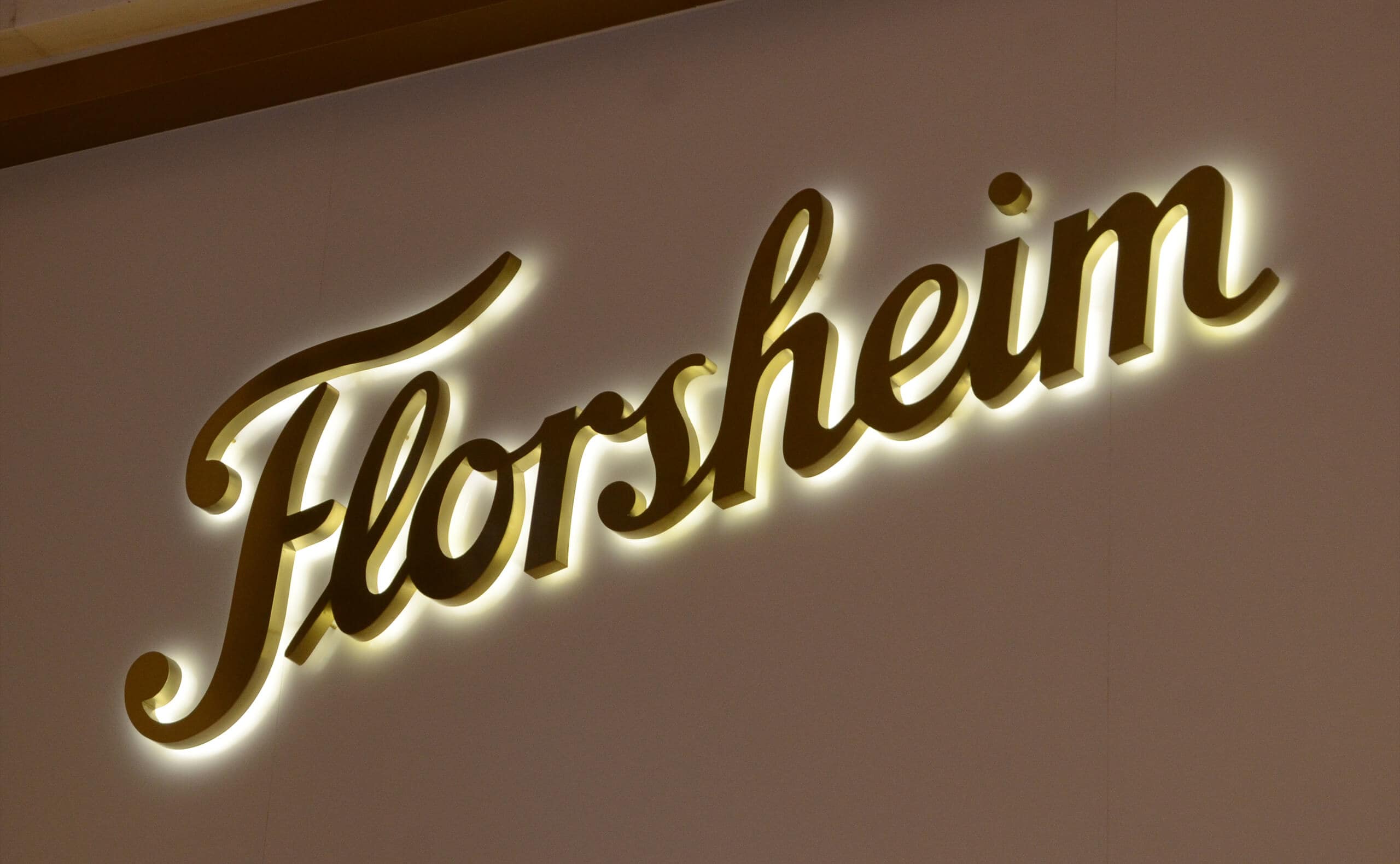

- Basic Metal Halo Lit Signs hide the back panel inside the shell and stand about 3/8 to 13/16 in (10 to 20 mm) off the wall on tube spacers. The spacers keep every letter at the same distance and hide the wires. The light spreads across that gap, so the halo is soft and the wall color shows in it.
- Pro Metal Halo Lit Signs let their stepped acrylic back panel show, so it glows in direct view and lights the wall close around each letter. The halo is brighter and wider, flush or off the wall.
- Acrylic Halo Lit Signs mount flush by default. Their face and the sides near it are painted, and the light leaves through an unpainted strip of the sides next to the wall.
- Face & Halo Lit Signs add a lit face to any of these backs, so the face glows while the halo still comes from behind.
How They Are Built
Metal reverse lit channel letters are fabricated. The face is laser cut from stainless steel, the return is bent to follow it, and the two are welded into one hollow letter shell. An opal acrylic back panel closes the back and lets the light through. Acrylic letters are CNC engraved from solid acrylic. Reverse Lit Channel Letters Models below lists the depth, back panel and mounting of each build, and each card links to the full specifications.
Where They Work Best
Reverse lit channel letters suit any wall that visitors face head on: a storefront fascia, the wall behind a reception desk, a lobby or a coffee shop counter. The softer the halo you want, the more the wall color matters, so tell us what the wall looks like and we will point you to the right model.
Outdoors, each letter gets waterproof LEDs and weep holes, and our guide to outdoor halo lit signs covers the rest.
How to Choose Reverse Lit Channel Letters
Choosing reverse lit channel letters starts with the halo you want and ends with the mounting, because the two go together. Settle the points below, send your artwork with a photo of the wall, and we will recommend a model with the quote.
Before any set ships, we light it for 24 hours and send you photos, and the 3-year limited warranty takes over from there. To see every model side by side, compare all our models, and here is how ordering works once you are ready.
- Halo
- A soft halo that takes on the wall color points to Basic Metal Halo Lit Signs. A stronger, wider halo lit straight from the exposed acrylic points to Pro Metal Halo Lit Signs.
- Mounting
- Basic Metal Halo Lit Signs always stand off the wall on tube spacers. Pro Metal Halo Lit Signs go flush or off the wall, Acrylic Halo Lit Signs mount flush by default, and Face & Halo Lit Signs follow the build of their rear part.
- Wall
- The wall reflects the halo, so its color shows in the glow. A photo of the wall with your artwork is all we need to allow for it.
- Light color
- Pick the white by the lamps already around the sign, white at 6000K, natural white at 4000K or warm white at 3000K, or ask for a colored halo. Pantone codes apply to paint, not to light.
- Indoors or outdoors
- Every model on this page goes outdoors. In harsh weather Basic Metal Halo Lit Signs have the edge, and Acrylic Halo Lit Signs suit indoor sites best.
Reverse Lit Channel Letters FAQ
Yes. Both names describe channel letters whose LEDs light up the wall behind them, so each letter is outlined by a halo. We build them the same way under either name.
Yes, under different names on our site. Standoffs are our stainless steel tube spacers, which hold letters off the wall where the design needs a gap. The transformer is our power supply, a MEAN WELL LPV unit that turns AC power into 12 V DC for the LEDs by default.
Basic Metal Halo Lit Signs, Pro Metal Halo Lit Signs and Acrylic Halo Lit Signs all work as channel letters that light the wall behind them. Face & Halo Lit Signs do too, and their faces light up as well.
Yes. A remote dims the letters smoothly anywhere from 0 to 100%, so you can set the halo to suit the room.
Written by the HaloLitSigns.com engineering team
Get a Free Quote
Tell us about your reverse lit channel letters, and we will reply within one working day.
Reverse Lit Channel Letters Models
These models are made as reverse lit channel letters. Each model page has full specifications, sample cases and PDF diagrams.

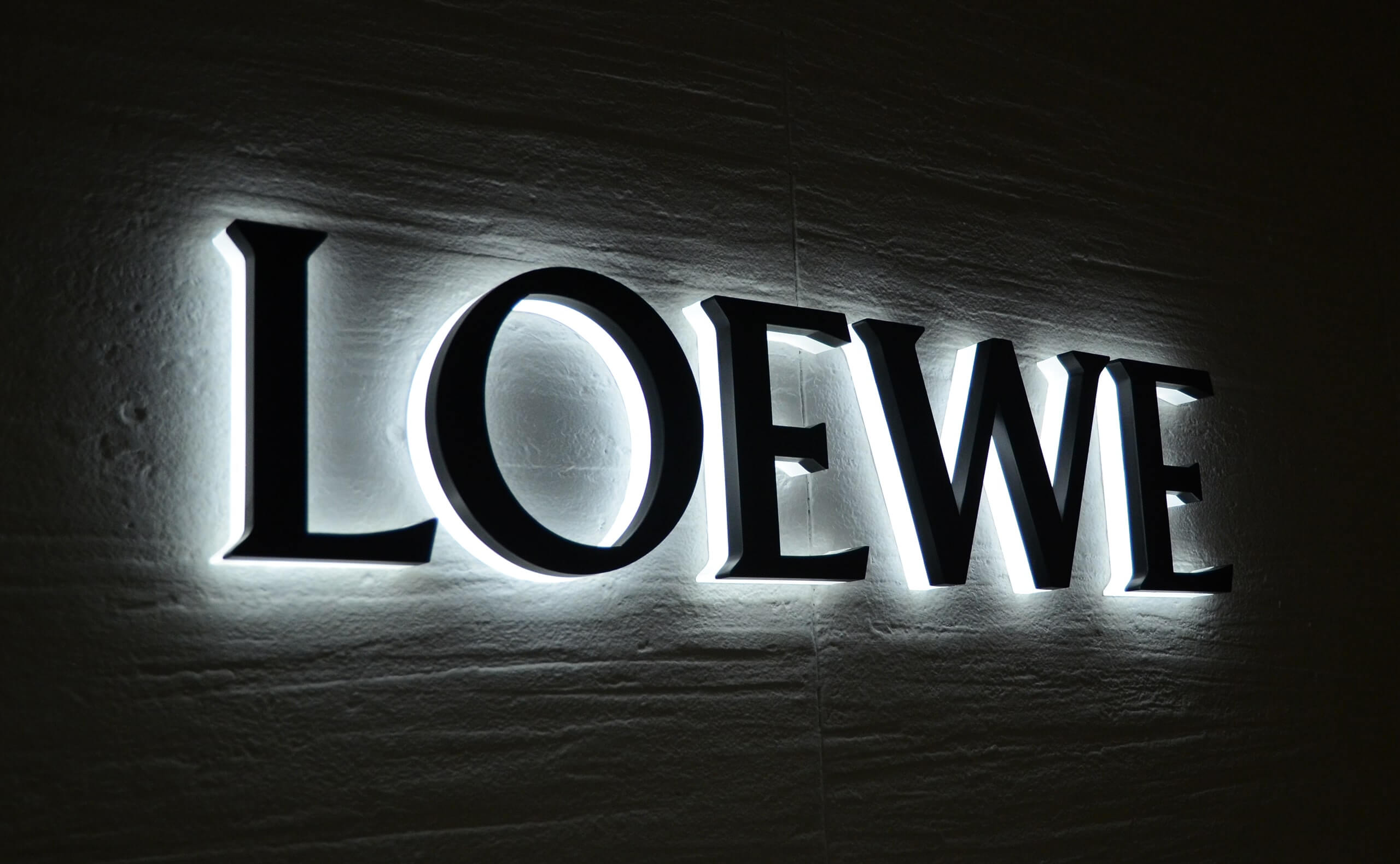

Pro Metal Halo Lit Signs
Every letter or logo piece has its own separate fabricated metal shell, stainless steel by default, with a stepped acrylic back panel that sits partly inside the shell and partly outside it. Their exposed acrylic glows in direct view and lights the wall right around each letter, whether they mount flush or off the wall.
More Details about Pro Metal Halo Lit Signs

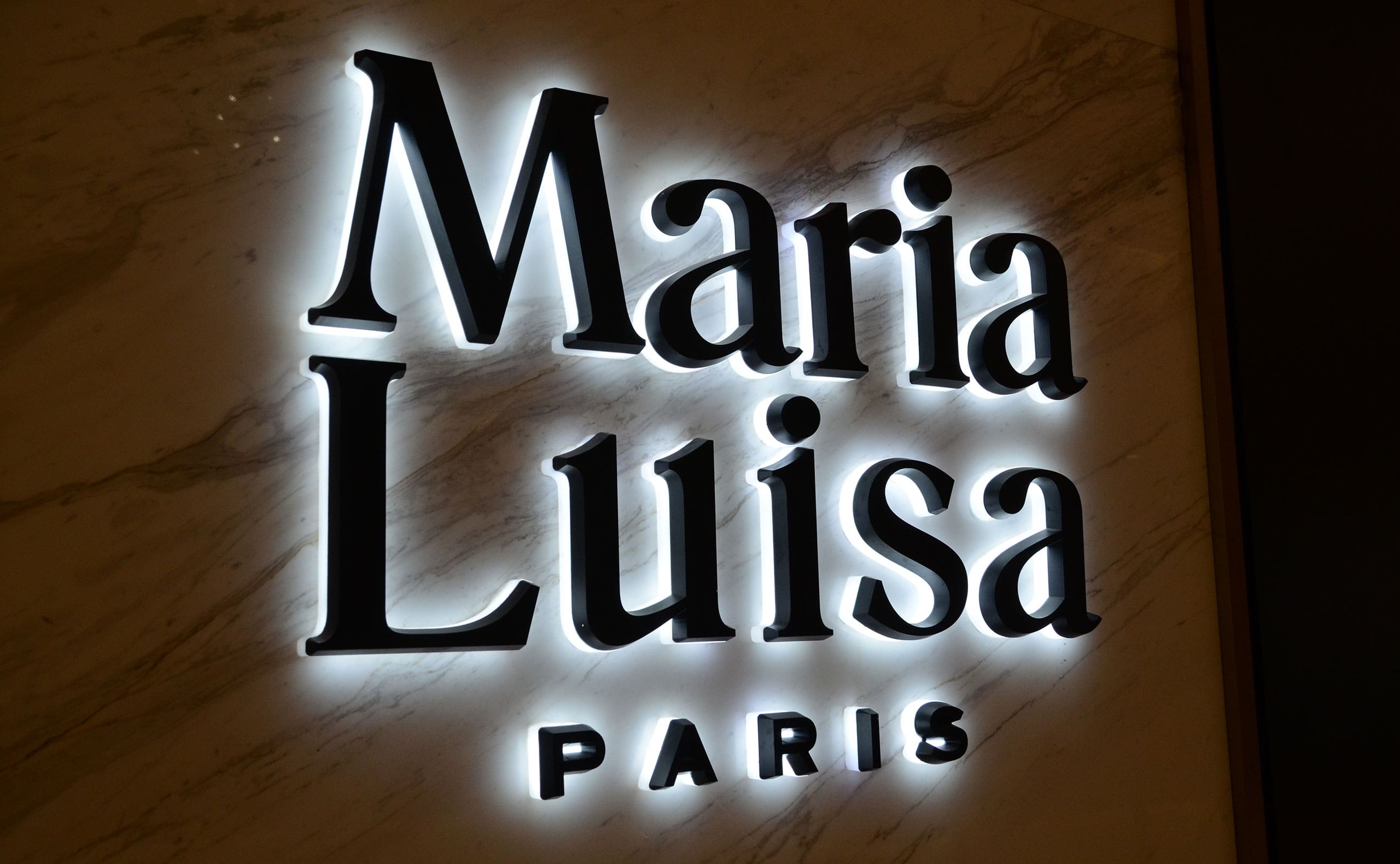

Acrylic Halo Lit Signs
Every letter or logo piece has its own separate CNC-engraved acrylic shell, with the face and the sides near the face painted to block the light. They mount flush, and the halo comes from an unpainted strip of the sides, right where each letter meets the wall.
More Details about Acrylic Halo Lit Signs
Face & Halo Lit Signs
Every letter or logo piece has its own separate shell, which can be built in many ways, in fabricated metal (stainless steel by default) or in acrylic. The face glows, while light from the back lights up the wall behind it and forms a halo around the outline. Their faces light up as well, while the halo still comes from the back, so each letter glows front and rear.
More Details about Face & Halo Lit Signs
